Hi,
I am a water sector professional engineer with 28 years of experience including working with NSW, Federal and other state governments in conceptualization, designing and reviewing environmental and potable water management projects in riverine environments, including regulators and fishways.
I appreciate there has been significant effort, understanding and context invested into the selection of the current site and the resulting fishway arrangement. The weir and fishway is understandably a heavy civil infrastructure response to the need for meeting Wilcannia's water security requirements along with fish passage and many other objectives.
I propose that a subtle change in location of the weir could enable significant cost savings and risk mitigation for the construction and operation of the weir, regulating gates and the fishway.
There appears to be an opportunity to utilise an existing natural asset in the old river channel to the east for the fishway (via a longer and more natural channel) and move the weir to just upstream of where the old river channel discharges to create appropriate entrance conditions for the fishway adjacent to the weir gates on the left abutment (looking downstream). The fishway exit into the weir pool could be a split level rock ramp with two gates/channels – one for regular flow and one for drought storage level flow. It may need some earthworks to reopen the connection to the old river loop and for the fishway entrance downstream of the weir.

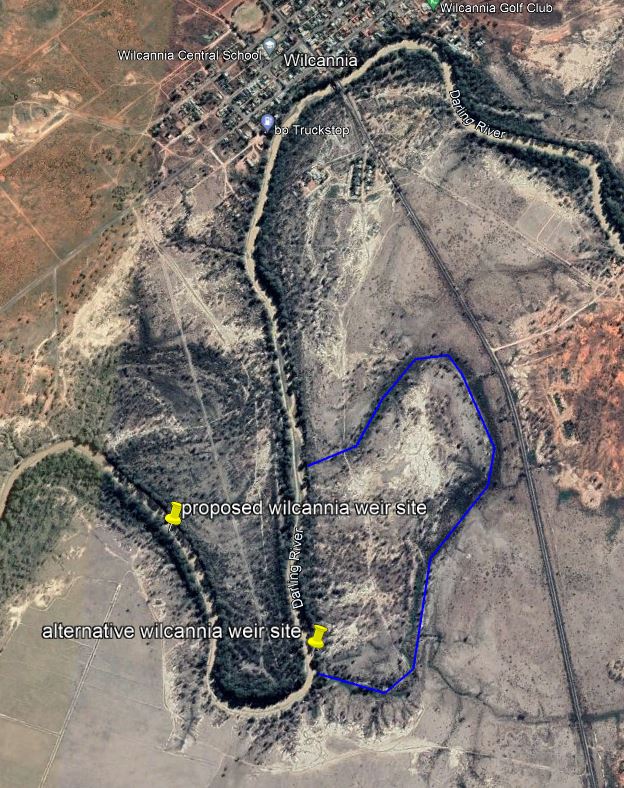

Please see the attachment showing the approximate location and alignment of the fishway (blue line).
I note this type of bypass fishway option has been proposed by other environmental agencies in other states as a desirable method of bypassing weirs and weir pools.
The benefits of this approach would include creating a new and diverse aquatic/riparian habitat in the old river channel and removing the need for a 100mx10m heavy civil asset in an active river system. It would also enable the regulator gates on the main weir to be located closer to the left abutment for operational and maintenance access.
Please note this is my own personal and professional opinion and I recognize it is offered without any understanding of the full project context inclusive of water management, other technical issues or requirements, nor any stakeholder, cultural, environmental issues or other project and site objectives, criteria or constraints.
I would be pleased to provide further clarity on this arrangement if required.
Regards
Gavin
